The session lifecycle webhook notifies your systems in real time whenever a conversation starts or ends, letting you run automations around each conversation without polling for changes. A common use is running automations once a conversation ends, without adding latency to the conversation itself. For example, you can sync conversation data to your CRM, kick off a downstream workflow in your own systems, or notify another service that a conversation has wrapped up. Because this work runs on your side in response to the webhook, none of it slows down the live conversation. Add your webhook URL to your project under Settings → Webhooks.
Clean Shot 2026 07 13 At 10 50 29@2x

​
Events

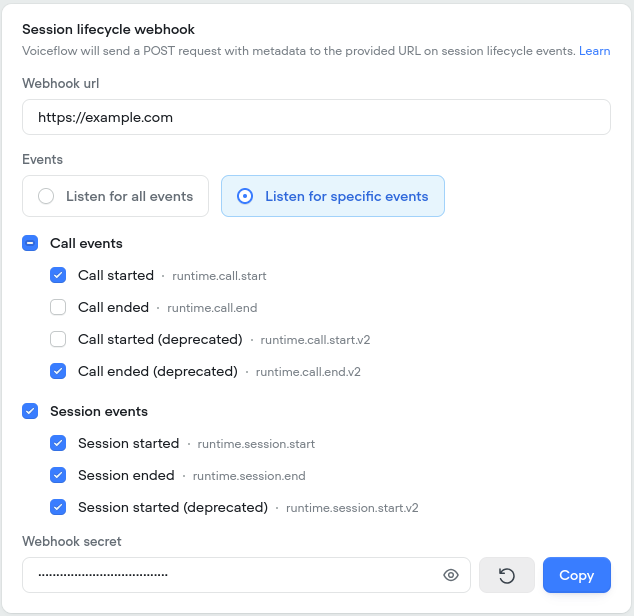

Voiceflow will send POST requests to your webhook URL on the following events.
Human-readable nameNameCategory
Session startedruntime.session.startSession events
Session endedruntime.session.endSession events
Call startedruntime.call.startCall events
Call endedruntime.call.endCall events

​
Session events

Session events fire whenever a conversation starts or ends, across all projects and channels. These are the events most integrations listen for.

​
runtime.session.start

This event is sent when a new session is started for a user.
{
  "type": "runtime.session.start",
  "data": {
    "userID": string,
    "projectID": string,
    "environmentID": string,
    "sessionID": string,
    "startTime": number // unix timestamp MS
  }
  "time": number // unix timestamp MS, event time
  "resource": string // project-{projectID}
}

{
  "type": "runtime.session.start",
  "data": {
    "environmentID": "6a15b5f6a85b1b570a8773cf",
    "projectID": "69f9fa36eeb8f50e7cfd2d5f",
    "sessionID": "6a15b6093f95e60007ec4e04",
    "startTime": 1779807753396,
    "userID": "g4dq75wr6asov6z571860xg0"
  },
  "resource": "project-69f9fa36eeb8f50e7cfd2d5f",
  "time": 1779807753433
}

​
runtime.session.end

This event is sent when a session ends.
{
  "type": "runtime.session.end",
  "data": {
    "userID": string,
    "projectID": string,
    "environmentID": string,
    "sessionID": string,
    "startTime": number, // unix timestamp MS
    "endTime": number // unix timestamp MS
  }
  "time": number // unix timestamp MS, event time
  "resource": string // project-{projectID}
}

{
  "type": "runtime.session.end",
  "data": {
    "endTime": 1779807762998,
    "environmentID": "6a15b5f6a85b1b570a8773cf",
    "projectID": "69f9fa36eeb8f50e7cfd2d5f",
    "sessionID": "6a15b6093f95e60007ec4e04",
    "startTime": 1779807753396,
    "userID": "g4dq75wr6asov6z571860xg0"
  },
  "resource": "project-69f9fa36eeb8f50e7cfd2d5f",
  "time": 1779807763081
}

​
Call events

Call events are specific to voice channels (phone and web voice), and carry call-level details such as the phone numbers involved and why a call ended.
Phone calls will receive both the runtime.call.* events and the corresponding runtime.session.* events. Use type to differentiate which event you’re handling.

​
runtime.call.start

This event is sent when the following call types are made:
  • Twilio inbound / outbound / prototype-outbound call
  • web widget voice call is made (including during testing on creator.voiceflow.com)
{
  "type": "runtime.call.start",
  "data": {
    "userID": string,
    "projectID": string,
    "environmentID": string, // alias of the environment the call ran against
    "startTime": number, // unix timestamp MS
    "platform": "twilio" | "web-voice",
    "metadata": object // depends on "platform"
  }
  "time": number // unix timestamp MS, event time
  "resource": string // project-{projectID}
}

{
  "type": "runtime.call.start",
  "data": {
    "userID": "+19876543210",
    "environmentID": "69f3df348d8088f34a622739",
    "projectID": "6772da2e485189279fa5b9da",
    "startTime": 1743563467788,
    "platform": "twilio",
    "metadata": {
      "callSid": "CA01ed76f14fee29c50f5de59400474006",
      "callType": "inbound",
      "userNumber": "+19876543210",
      "agentNumber": "+17782006110"
    }
  },
  "time": 1743563467874,
  "resource": "project-6772da2e485189279fa5b9da",
}

​
runtime.call.end

This event is sent when a call is completed.
{
  "type": "runtime.call.end",
  "data": {
    "userID": string,
    "projectID": string,
    "environmentID": string, // alias of the environment the call ran against
    "startTime": number, // unix timestamp MS
    "endTime": number, // unix timestamp MS
    "endReason"?: string | undefined, // why the call ended, arbitrary string, common reasons include "hangup" "end trace" "twiml" "answering machine"
    "platform": "twilio" | "web-voice",
    "metadata": object // depends on "platform"
  }
  "time": number // unix timestamp MS
  "resource": string // project-{projectID}
}

{
  "type": "runtime.call.end",
  "data": {
    "userID": "+19876543210",
    "environmentID": "69f3df348d8088f34a622739",
    "projectID": "6772da2e485189279fa5b9da",
    "startTime": 1743563467788,
    "endTime": 1743563467834,
    "endReason": "hangup",
    "platform": "twilio",
    "metadata": {
      "callSid": "CA01ed76f14fee29c50f5de59400474006",
      "callType": "inbound",
      "userNumber": "+19876543210",
      "agentNumber": "+17782006110"
    },

  },
  "time": 1743563467874,
  "resource": "project-6772da2e485189279fa5b9da",
}

​
Best practices

  • Check type when evaluating a response. There may be additional types of events in the future with a different shaped request body, as well as new properties and metadata.
  • data.metadata is only included on call events. Check data.platform before reading it, as the available fields vary by platform (eg: data.metadata.callSid isn’t present on a "web-voice" call).
  • If you’re using the same webhook URL across multiple projects, check data.projectID to tell them apart.
